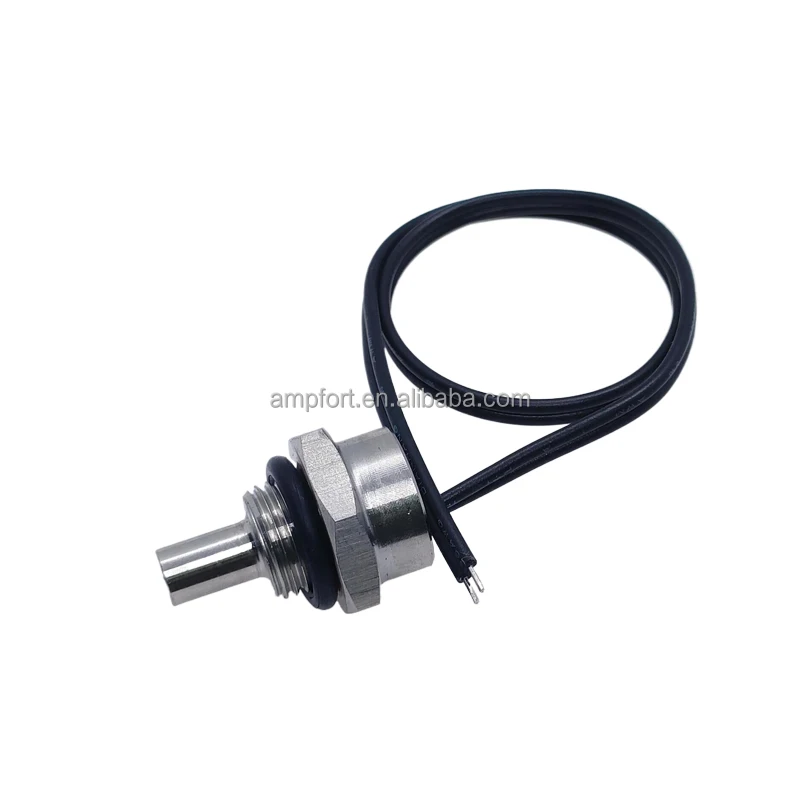

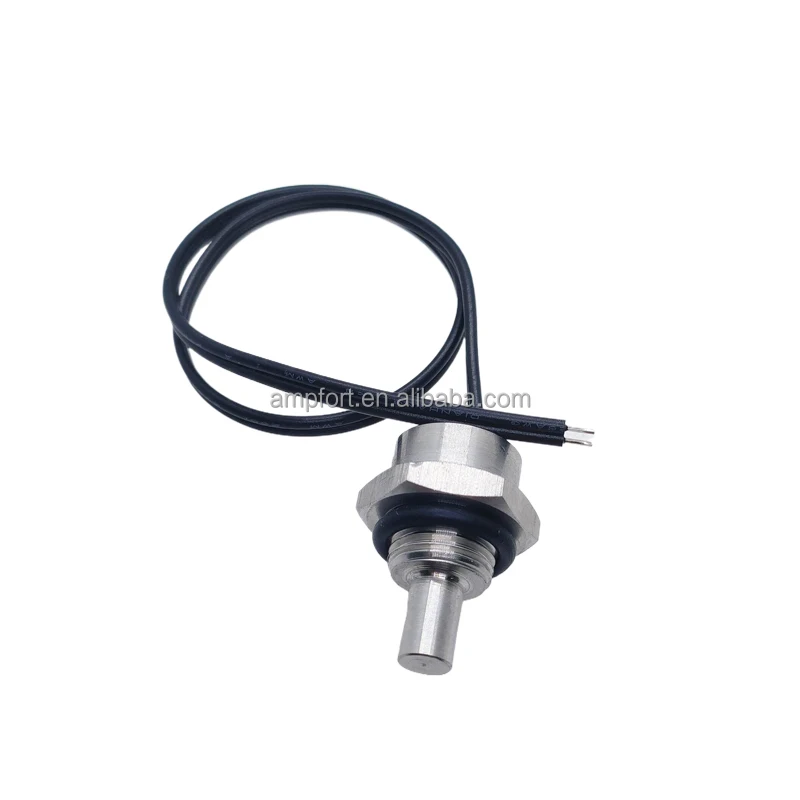

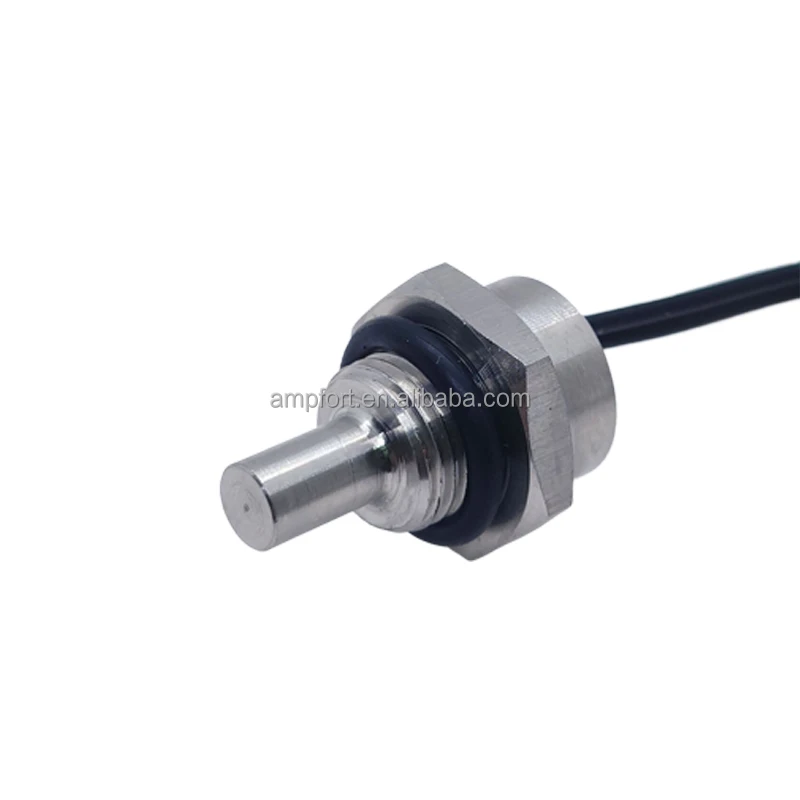

AISI316 Stainless Steel G1/8 Thread Waterproof NTC Thermistor Temperature Probe 10K 1% 3435 For Hot Water Boilers
The temperature sensor is to connect high -precision, high -reliability NTC thermistor with PVC wires, iron fluorine wires and other wires, and encapsulate it with insulation, thermal conductivity, and waterproof materials. In household air conditioners, car air conditioners, refrigerators, refrigerators, cold cabinets, water heaters, water dispensers, heating aircraft, disinfection cabinets, disinfection cabinets, washing machines, dryers, dryers and medium -temperature drying boxes, constant temperature boxes, etc.
1: MF53 series products are NTC thermistor temperature sensors
2: Wide resistance range: 1kΩ ~ 500kΩ
3: High resistance and B value accuracy, good consistency, can be swapped
4: Good insulation, high reliability, and fast reflection,
5: Using a double -layer sealing process, it has good insulation and sealing and anti -mechanical collision, anti -bending ability, high reliability
6: Can work for a long time (annual resistance value drift rate ≤1 ‰)
7: The installation conditions used can be packaged, which is convenient for users to install
8: Use temperature range: -20 ~ 105 ℃
Mostly used for temperature control/protection in central-heating boilers, compressors, compressors, air-conditioning systems, heat exchangers, heat pumps, chillers and humidifiers,perfect for refrigerants and hydronics fluids.
Gas boilers
Water heaterwater pipe with different diameter
Heating and air conditionding systems
Instant water heaters
Compressors
Gas boiler control
Home water systems
Air conditioners
Radiator inlets and outlets
Vending machines
Electric showers
Hot water boiler
| P/N | CWF103F3435FB201LM6 |
| Cable | UL2651 26# 105℃Black double parallel L=200±10mm(Exposed) |
| Head | S15*21-g1/8-φ4.8*8 316 SUS Hexagonal |
| NTC Thermistor | R25=10KΩ±1% B25/85=3435K±1% |
